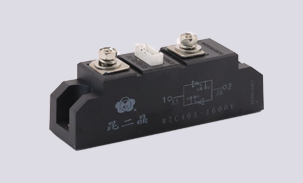

型號GJX-1□48□
電流10、15、20、25、40、60、80、100、120A
產品參數過零信號3-32VDC輸入、隨機信號4-12VDC輸入、輸出24-480VAC
● 無運動零部件,無機械磨損,無動作噪聲,無機械故障,可靠性高;
● 無燃弧觸點,無觸點間的火花、電弧,無觸點抖動和磨損,對外干擾小;
● 開關速度迅速,動作時間可達10-3S以下;
● 靈敏度高,控制功率小,能很好地與TTL、CMOS電路兼容;
● 抗沖擊振動性能優良,實現“零”壓切換;
● 絕緣樹脂灌封,具有的防潮、防霉、防腐性能,防爆性能也極佳;
● 半導體器件開關工作,壽命長;
● 易實現附加功能。
下列表格藍色字體為產品技術規格書,歡迎下載查看,如有出入請聯系15306880222按實際為準!

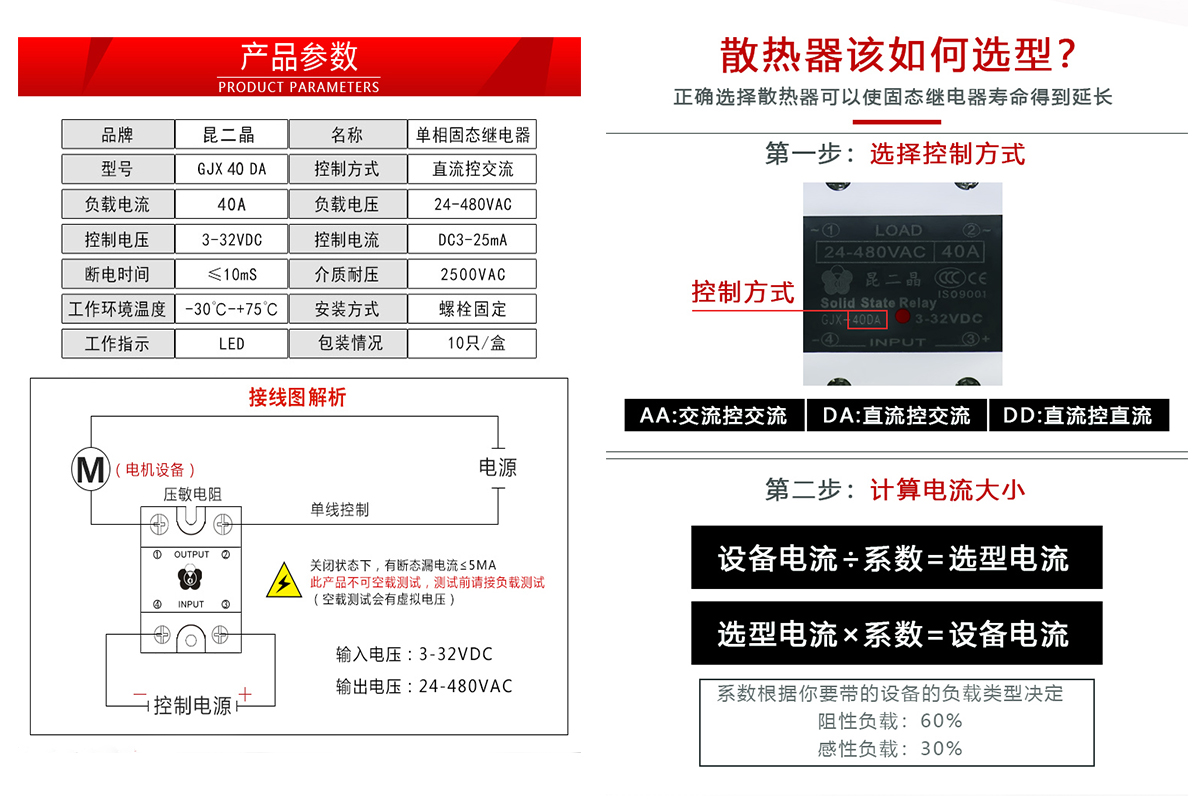

產品型號 | 負載電壓 | 負載最大電流 | 隔離電壓 | 絕緣電壓 | 控制電壓 | 控制電流 | 解決方案 | 電子手冊 | |
過零型 | 隨機型 | ||||||||
GJX-10DA | 24-480VAC | 10A | ≥2500VAC | ≥2500VAC | 3-32VDC | 4-12VDC | 6-15mA |
|
10-40A單相固態繼電器 |
GJX-15DA | 24-480VAC | 15A | ≥2500VAC | ≥2500VAC | 3-32VDC | 4-12VDC | 6-15mA |
|
|
GJX-20DA | 24-480VAC | 20A | ≥2500VAC | ≥2500VAC | 3-32VDC | 4-12VDC | 6-15mA |
|
|
GJX-25DA | 24-480VAC | 25A | ≥2500VAC | ≥2500VAC | 3-32VDC | 4-12VDC | 6-15mA |
|
|

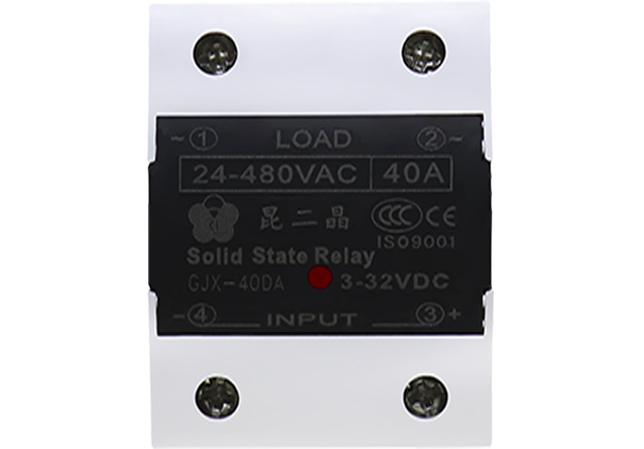

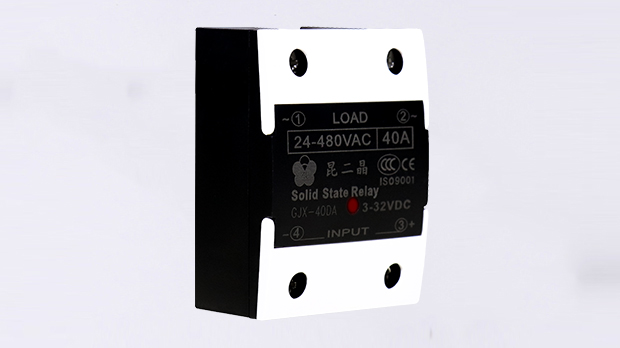

GJX-40DA | 24-480VAC | 40A | ≥2500VAC | ≥2500VAC | 3-32VDC | 4-12VDC | 6-15mA |
|
|
GJX-60DA-H | 24-480VAC | 60A | ≥2500VAC | ≥2500VAC | 3-32VDC | 4-12VDC | 6-15mA |
|
60-120A增強型單相固態繼電器 |
GJX-80DA-H | 24-480VAC | 80A | ≥2500VAC | ≥2500VAC | 3-32VDC | 4-12VDC | 6-15mA |
|
|
GJX-100DA-H | 24-480VAC | 100A | ≥2500VAC | ≥2500VAC | 3-32VDC | 4-12VDC | 6-15mA |
|
|
GJX-120DA-H | 24-480VAC | 120A | ≥2500VAC | ≥2500VAC | 3-32VDC | 4-12VDC | 6-15mA |
|
